Overview

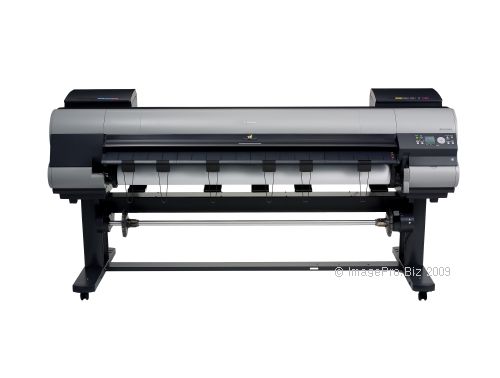

Canon announces the new imagePROGRAF iPF9000S, 60" printer, a powerful print engine ideally built for professional print service providers who need to produce more output in less time.
High speed throughput up to 403 ft2/hr, an 80GB hard drive, borderless printing and other features, are seamlessly integrated into a single, exceptionally efficient production printing system engineered to produce more high quality work, at a lower cost and in less time.
The new innovative 8 color LUCIA ink configuration helps increase print efficiency and creates dynamic colors and tones that are ideal for production graphics applications. Speed without quality has little value, but with a built-in calibration feature and other advanced quality control functions such as the L-COA processor, the iPF9000S is built to deliver consistently superior results without sacrificing speed.
This production grade printer is more than 40% faster than any other imagePROGRAF Graphic Arts printer making it ideal for anyone who needs to increase the reliability, durability and productivity of their large format printing services.
Product Specifications
Specifications Printer Printer Type 8-Color 60-inch Printer Number of Nozzles Total: 30,720 C, PC, PM, GY: 5,120 nozzles each BK, MBK, Y, M: 2,560 nozzles each Nozzle Pitch 1,200 dpi Non-firing nozzle detection and compensation Print Resolution (Up to) 2,400 x 1,200 dpi (Max) OS Compatibility Windows«(2000/XP/Vista 32/64bit) MAC(OS9,OS10)1 Standard Interface USB 2.0 High-Speed 10/100 Base-T/TX Optional: IEEE 1394 (Firewire«) Ink Droplet Size 4 picoliter Ink Capacity 330ml per color (Optional 700ml) Ink Types LUCIA ink (Pigment-based) Color Set Cyan, Photo Cyan, Magenta, Photo Magenta, Yellow, Black, Matte Black, Gray Buffer/Ram 640 MB Hard Drive 80GB Media Width Cut Sheet: 8" - 60" Roll: 10" - 60" Media Thickness Front Loading Manual Feed: 0.07 - 0.8mm (2.8 - 31.4mil) Roll: 0.07 - 0.8mm (2.8 - 31.4mil) Maximum Roll Print Length 63 Feet (19 meters)2 Maximum Media Roll Diameter 5.9" (150mm) Borderless Printing Width (Roll Media Only) 515 mm (JIS B2), 1, 030 mm (JIS B0), 594 mm (ISO A1), 841 mm (ISO A0), 10", 14", 16", 24", 36", 42" Paper-Feed Method Roll Feed: One Roll, front output Front Loading Manual Feed: One sheet, front output Languages GARO (Canon Proprietary) Noise Level (Approx.) Operation: 51 dB (A) or less Standby: 35dB (A) or less Acoustic Power: 6.7 Bels Physical Dimensions 45" (H) x 90.5" (W) x 30.2" (D) Weight Approximately 357 lbs with stand Power Source AC-100-120V (50-60Hz) Power Consumption Maximum: 190W or less Standby 6W or less Power Off: 1W or less (Compliant with Executive Order) Operating Environment Temperature: 59?-86? F (15?-30? C) Relative Humidity: 10-80% (No Condensation) User-replaceable items Print Head (PF-03), Maintenance Cartridge (MC-08), Ink Tank (PFI-301/PFI-701), Durable Rotary Blade (CT-06) Software Included Canon Printer Driver, Print Plug-in for Adobe Photoshop, Print Plug-in for Digital Photo Professional, Digital Photo Front-Access, Printer Driver Extra Kit (Free Layout, imageRUNNER Linking Function)
